Overview
The ANENG A3005 is a pen-style digital multimeter designed for electricians, home inspectors, and DIY enthusiasts who need a portable and versatile tool for electrical diagnostics. Unlike traditional handheld multimeters that require two probes, the A3005 offers one-handed operation, making it convenient for working in tight spaces. This review examines its features, performance, pricing, and user feedback to help you decide if it's the right tool for your needs.
What the ANENG A3005 Offers

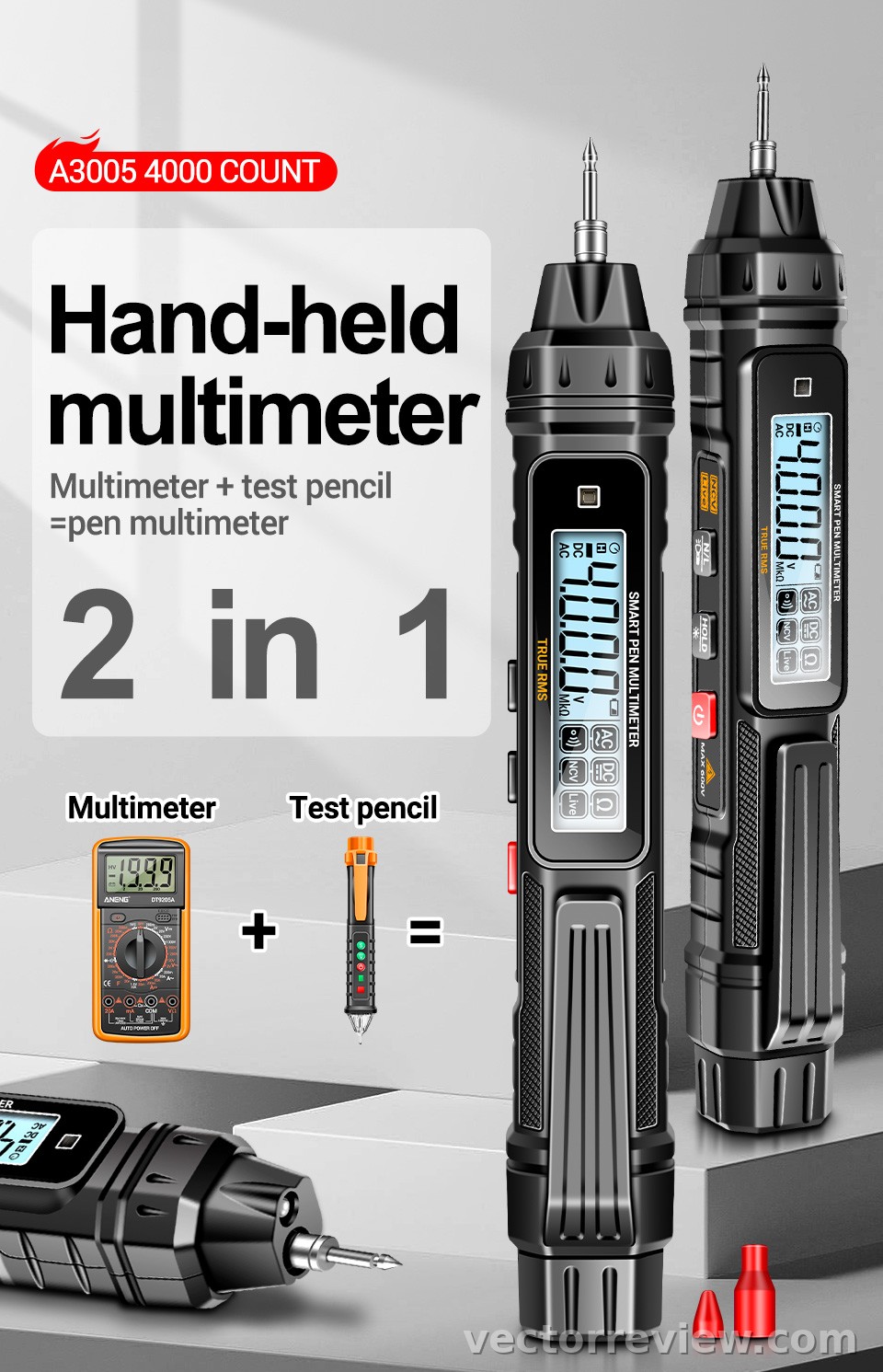

The A3005 is a compact, lightweight device that combines multiple functions into a single instrument. It measures AC/DC voltage up to 600V, resistance up to 40MΩ, capacitance, frequency, and includes diode testing and continuity buzzer. The 4000-count digital display provides clear readings, and the device includes non-contact voltage (NCV) detection and live zero line identification for enhanced safety. The pen-like design allows for easy one-handed use, and the backlit screen with flashlight ensures visibility in low-light conditions. The package includes a test line, extra pointed needles, alligator clip, U-shaped insert, extended and short nickel-plated copper needles, banana tip, flat needle, and a user manual.
Key Features
Measurement Capabilities
The A3005 covers a wide range of measurements: AC and DC voltage from 0.8V to 600V with 1mV resolution, resistance from 0.1Ω to 40MΩ, capacitance up to 40mF, and frequency up to 10MHz. It also performs diode tests and continuity checks with an audible buzzer. The 4000-count display ensures precise readings, and the auto-ranging function simplifies operation.
Safety and Convenience
Safety features include NCV detection, which allows users to check for live wires without direct contact, and a live zero line mode that distinguishes between live and neutral conductors. The device also has a built-in flashlight, data hold, auto power-off, and low battery indicator. These features make it suitable for both professional and home use.
Build and Ergonomics
The A3005 is constructed from ABS and silica gel, providing durability and a non-slip grip. It measures 184.5 x 25.7 x 29.2mm and weighs 150g, making it highly portable. The pen-style form factor allows for one-handed operation, and the buttons are designed for intuitive use: a short press for data hold, a long press for backlight, and a dedicated button to toggle between NCV, LIVE, and AUTO modes.
Pricing and Availability
The ANENG A3005 is available through various online retailers, including AliExpress, Banggood, and the official ANENG multimeter store. Prices vary but generally range from $9 to $20, making it an affordable option compared to traditional multimeters with similar features. The package includes a comprehensive set of accessories, adding to its value. Note that batteries (2x AAA) are not included.
User Experiences
Users have reported that the A3005 is accurate and reliable for basic electrical measurements. The pen-style design is praised for its convenience, especially in tight spaces. The NCV and live zero line features are highlighted as useful safety additions. Some users mention that the device requires some knowledge to use effectively, and the manual could be clearer. Overall, feedback is positive, with many considering it a great value for the price.
Pros and Cons
Pros
- Compact and portable pen-style design
- One-handed operation
- Wide measurement range including voltage, resistance, capacitance, and frequency
- NCV detection and live zero line identification for safety
- Backlit display and built-in flashlight
- Data hold and auto power-off
- Affordable price with included accessories
Cons
- Requires basic knowledge of electrical measurements
- Lacks advanced features like phase sequence detection
- Batteries not included
- Manual may be insufficient for beginners
Conclusion
The ANENG A3005 is a versatile and affordable pen multimeter that suits electricians, DIYers, and hobbyists. Its combination of portability, safety features, and measurement capabilities makes it a handy tool for quick diagnostics. While it may not replace high-end professional multimeters for specialized tasks, it offers excellent value for everyday electrical work. If you need a compact, reliable multimeter for basic troubleshooting, the A3005 is worth considering.
