Overview

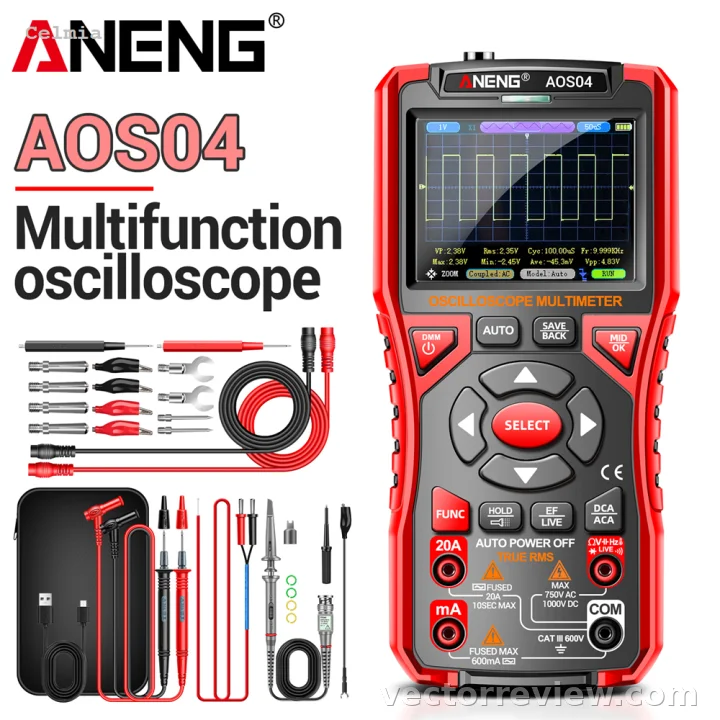

The ANENG AOS04 is a handheld test instrument that combines a digital oscilloscope and a digital multimeter in one portable device. It is aimed at technicians, engineers, electronics hobbyists, and educators who need basic waveform visualization alongside standard electrical measurements.

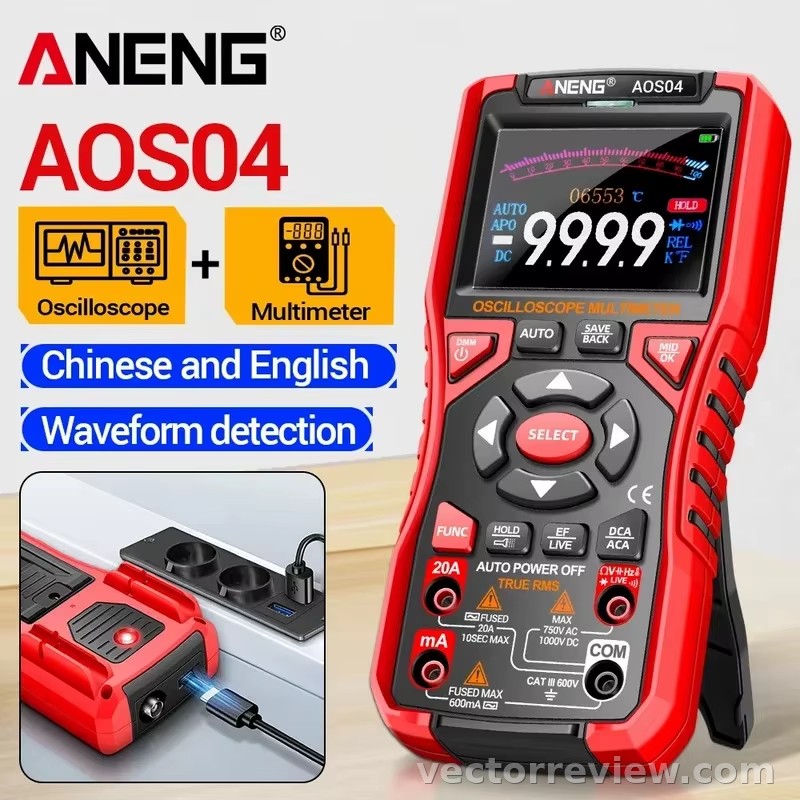

Unlike traditional benchtop oscilloscopes, the AOS04 is battery-powered and compact, making it suitable for field diagnostics, lab work, and educational settings. It features a 3.2-inch VA reverse-color screen, a built-in 2500mAh lithium battery, and USB Type-C charging.
What It Offers
The AOS04 is designed for multi-scene measurement. Its oscilloscope mode provides auto and manual testing, allowing users to set parameters such as predicted waveform voltage, time base, and cursor position. It also supports waveform comparison when connected to a signal generator.
In multimeter mode, it covers a wide range of electrical parameters with a triple display for simultaneous readings. The device includes non-contact voltage detection (NCV), live wire identification, and a flashlight for low-light conditions.
Key Specifications
| Feature | Specification |
|---|---|
| Oscilloscope Bandwidth | 10 MHz |
| Sampling Rate | 50 MS/s |
| Display | 3.2-inch VA reverse-color screen |
| DC Voltage | 0 V to 999.9 V, ±(0.5% + 3) |
| AC Voltage | 0 V to 750.0 V, ±(1.0% + 3) |
| DC Current | 0 mA to 20.00 A, ±(1.0% + 3) |
| AC Current | 0 mA to 20.00 A, ±(1.2% + 3) |
| Resistance | 0 Ω to 99.99 MΩ, ±(3.0% + 5) |
| Capacitance | 0 nF to 99.99 mF |
| Frequency | 0 Hz to 9.999 MHz |
| Battery | 3.7V 2500mAh lithium, USB Type-C charging |
| Waveform Storage | Up to 9 sets |
| Counts | 9999 |
Additional Features
- Auto and manual ranging for flexible measurement control.
- Data hold and flashlight via the HOLD key.
- Waveform save/recall with the SAVE BACK key (short press to save, long press to view).
- Menu system with settings, parameters, system, and calibration options.
- Screen brightness adjustment from 10% to 100%.
- Pen holder with watch slot protection for portability.
![6 in 1 Multi Charging Cable [3Pack 4FT] Multi Charger Cable Nylon ...](/media/generated_images/aneng-aos04-package-contents-laid-out-including-d5616dc3.jpg)
Pricing and Availability
The ANENG AOS04 is sold through various online retailers, including Martview and specialized electronics stores. Pricing varies by seller and quantity; for example, Martview lists discounts for bulk orders (3, 5, or 10 units). As of this review, no official MSRP is provided, but the street price typically falls in the budget-to-midrange segment for handheld oscilloscope multimeters.
Shipping is available worldwide from some sellers, though availability and delivery times may vary by region.
User Experience and Feedback
At the time of writing, the AOS04 has no customer reviews on the sources checked. This means there is limited real-world feedback on its performance, durability, or ease of use. Potential buyers should look for reviews on other platforms or forums before purchasing.
The lack of reviews is not unusual for a relatively new or niche product, but it does mean that users cannot rely on crowd-sourced pros and cons yet.
Pros and Cons
Pros
- 2-in-1 functionality saves space and cost compared to separate devices.
- Portable and battery-powered with USB-C charging.
- Wide measurement range covering voltage, current, resistance, capacitance, and frequency.
- Waveform storage for up to 9 sets, useful for comparison.
- Non-contact voltage detection adds safety and convenience.
- Adjustable screen brightness and flashlight for various lighting conditions.
Cons
- Limited oscilloscope bandwidth (10 MHz) and sampling rate (50 MS/s) may not suit advanced or high-frequency work.
- No user reviews available, so real-world reliability is unverified.
- Pricing and availability can vary significantly by seller.
- No official warranty information provided in the sources.
- Learning curve for users new to oscilloscopes, despite auto features.
Summary
The ANENG AOS04 is a versatile handheld tool that merges a basic oscilloscope with a full-featured multimeter. It offers a broad set of measurement functions, waveform visualization, and portability at a likely competitive price point. However, its oscilloscope capabilities are entry-level, and the absence of user reviews makes it hard to gauge long-term reliability.
For hobbyists, students, and technicians needing occasional waveform checks alongside standard multimeter tasks, the AOS04 could be a convenient all-in-one option. Those requiring higher bandwidth or professional-grade precision may need to look at more advanced (and typically more expensive) instruments.
As always, check current pricing, seller reputation, and return policies before buying.
